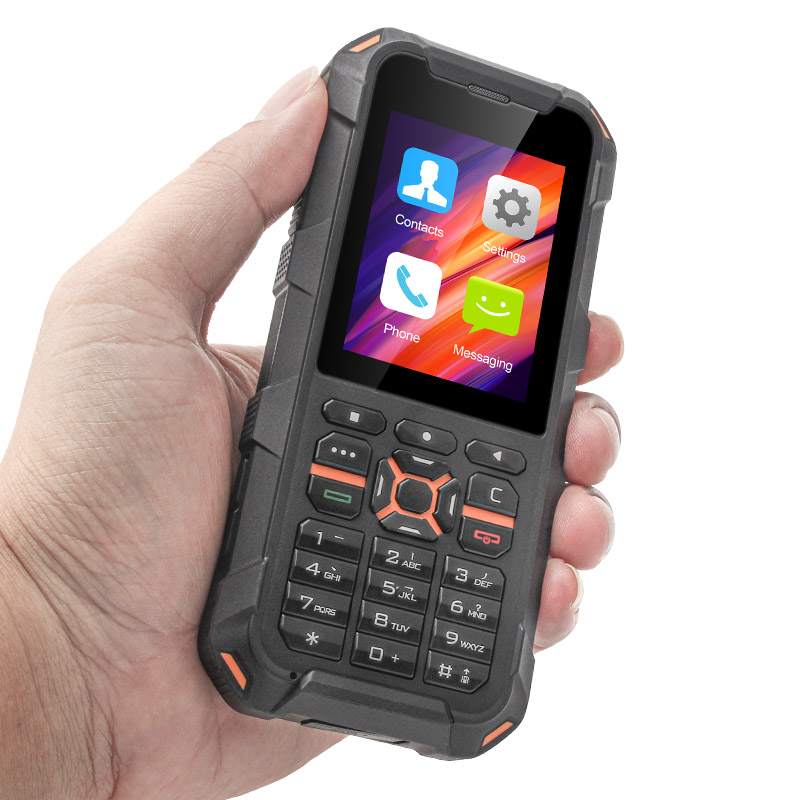

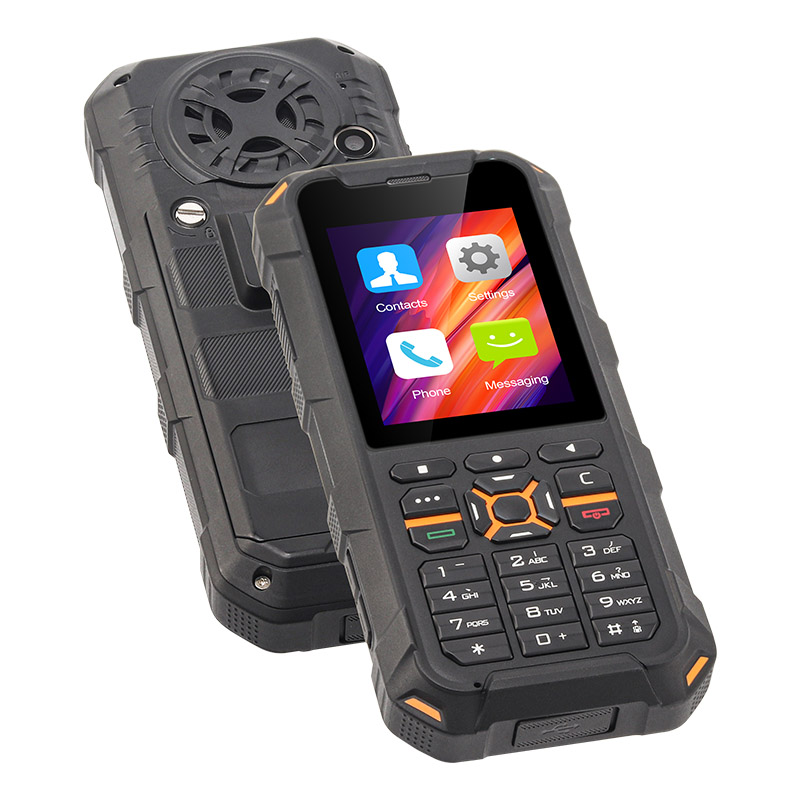

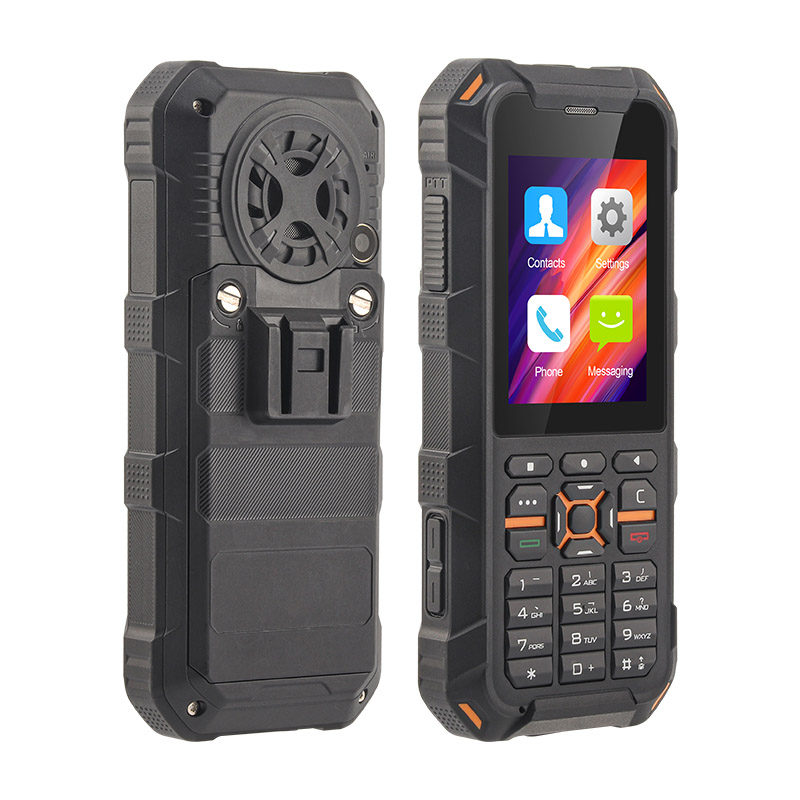

UNIWA F20 2.4 Inch Touch Screen Public Network PoC Radio Rugged Phone

Model: UNIWA F20

1) Durable IP68 Waterproof Design

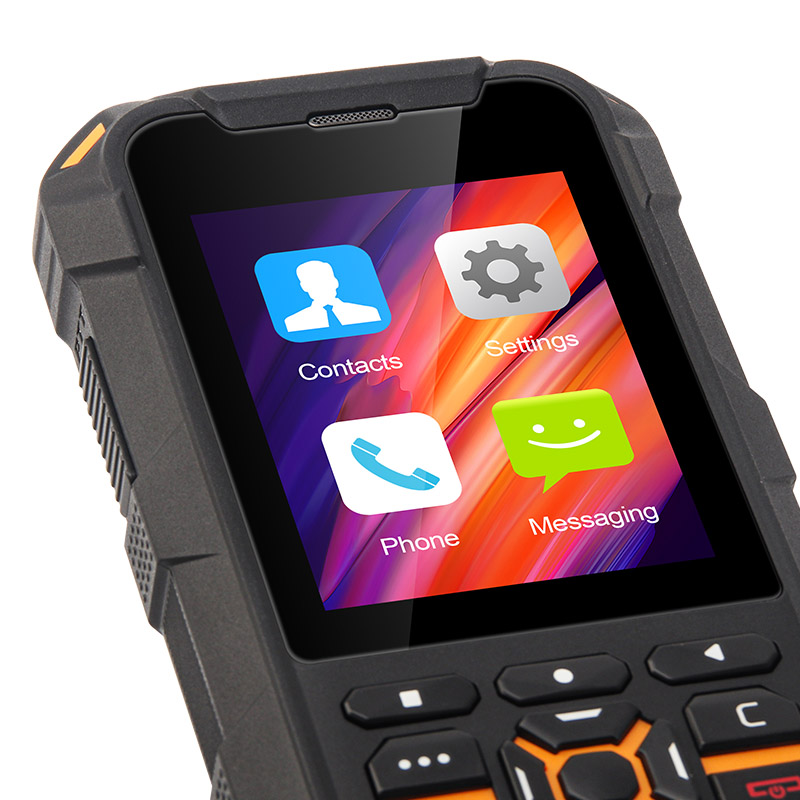

2) 2.4 Inch Compact Touch Screen
3) Support 4G Network Bands
4) Removable 3500mAh Battery
5) Support Zello, Real PTT, Pocstar Walkie Talkie Apps

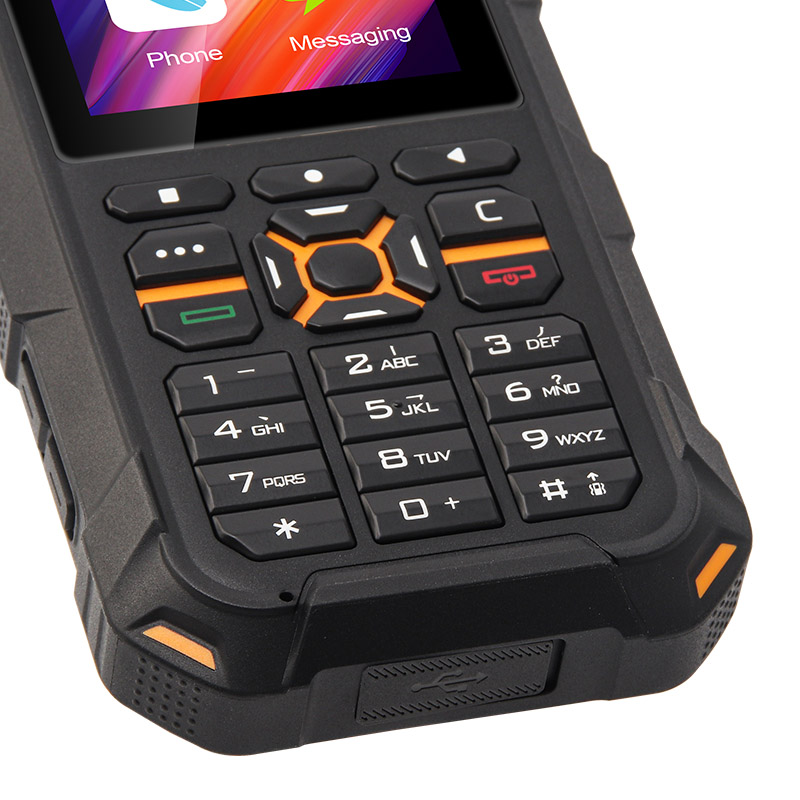

6) T9 Keypad for Quick Input
7) GPS/GLONASS/Beidou For Location Tracking

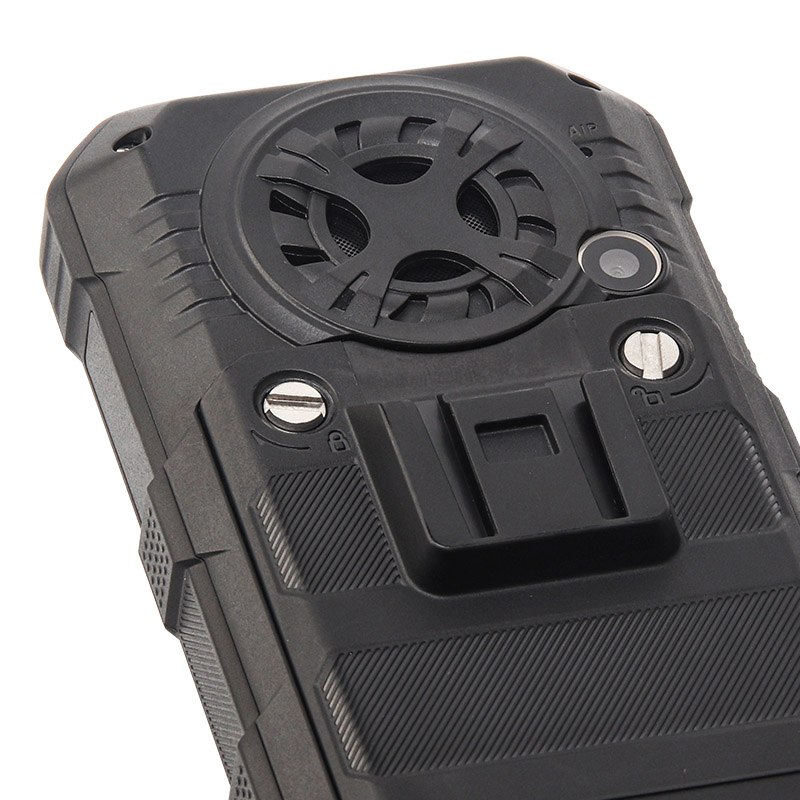

8) φ36 Big Loudspeaker

MOQ: 100PCS

Free Inquiry

Specification

Feature

RELATED MODELS

UNIWA F60

IP68 Zello Radio POC Walkie Talkie
UNIWA W888

6.3 Inches IP68 NFC Rugged Smartphone
UNIWA P2 Plus

4G Rugged DMR Walkie Talkie
UNIWA F80S

4G Long Range Android PoC Walkie Talkie

UNIWA F60 IP68 Waterproof 2.8 Inches 4G GSM POC Walkie Talkie with NFC and SOS Button

IP68 Zello Radio POC Walkie Talkie

UNIWA W888 6.3 Inches 2W Big Speaker Global Version IP68 Waterproof NFC Smartphone

6.3 Inches IP68 NFC Rugged Smartphone

UNIWA P2 Plus IP67 Rugged Mobile Zello 4W DMR UHF Repeater Walkie Talkie Smartphone

4G Rugged DMR Walkie Talkie

UNIWA F80S Android Zello Real PTT 4G Walkie Talkie PoC Radio 200 km to 3000 mile Long Range

4G Long Range Android PoC Walkie Talkie

BASIC INFO
Model No.	UNIWA F20
Operating system	Android 8.0 Go
Dimension	134.559.521mm
Weight	208g (include battery)
Material	PC+ABS
Color	Black
Languages	Multi-language
HARDWARE
Screen	2.4 inch QVGA touch screen, 320*240px
Processor	Mediatek MT6739 Cortex A53 quad core, 1.5GHz；GPU: PowerVR GE8100, 570MHz
RAM	1GB RAM
ROM	8GB ROM, support Micro SD card up to 64GB maximally
Camera	Single camera: 2.0MP rear camera with flashlight
Battery	Removable 3500mAh li-polymer battery
Speaker	Φ36/1.5W waterproof speaker
Sensor	Gravity sensor, proximity sensor, light sensor
Buttons	PTT1, volume +/-, SOS button1, custom buttons*1, T9 keypad
LED Indicator	Red/green
Flashlight	Support
NETWORK & CONNECTIVITY
Network Bands	2G: GSM 850/900/1800/1900MHz;
	3G: WCDMA B1/B2/B5/B8; TDS(B34/39)+CDMA: BC0 1X EVDO
	4G: FDD-LTE B1/B3/B5/B7/B8/B20, TDD-LTE: B34/B38/B39/B40/B41
Wi-Fi	IEEE 802.11 b/g/n, support wifi hotspot
BT	V4.2 (BLE)
GNSS	Support GPS/Beidou/GLONASS
NFC	Optional, support ISO18092, ISO14443 A/B, ISO15693 protocols and ID card
I/O INTERFACES
Micro SIM Slot	*1
TF card slot	*1
Micro USB Port	*1
OTHER FEATURES
PoC function	Support Zello, real PTT, Pocstar etc.
RELIABILITY
Waterproof	IP68/IP69K
Working Temperature	-20℃~+60℃
Storage Temperature	-30℃~+60℃
STANDARD ACCESSORIES
Power Adaptor (5V/1A)	*1
USB cable	*1
Battery	*1
Belt Clip	*1
